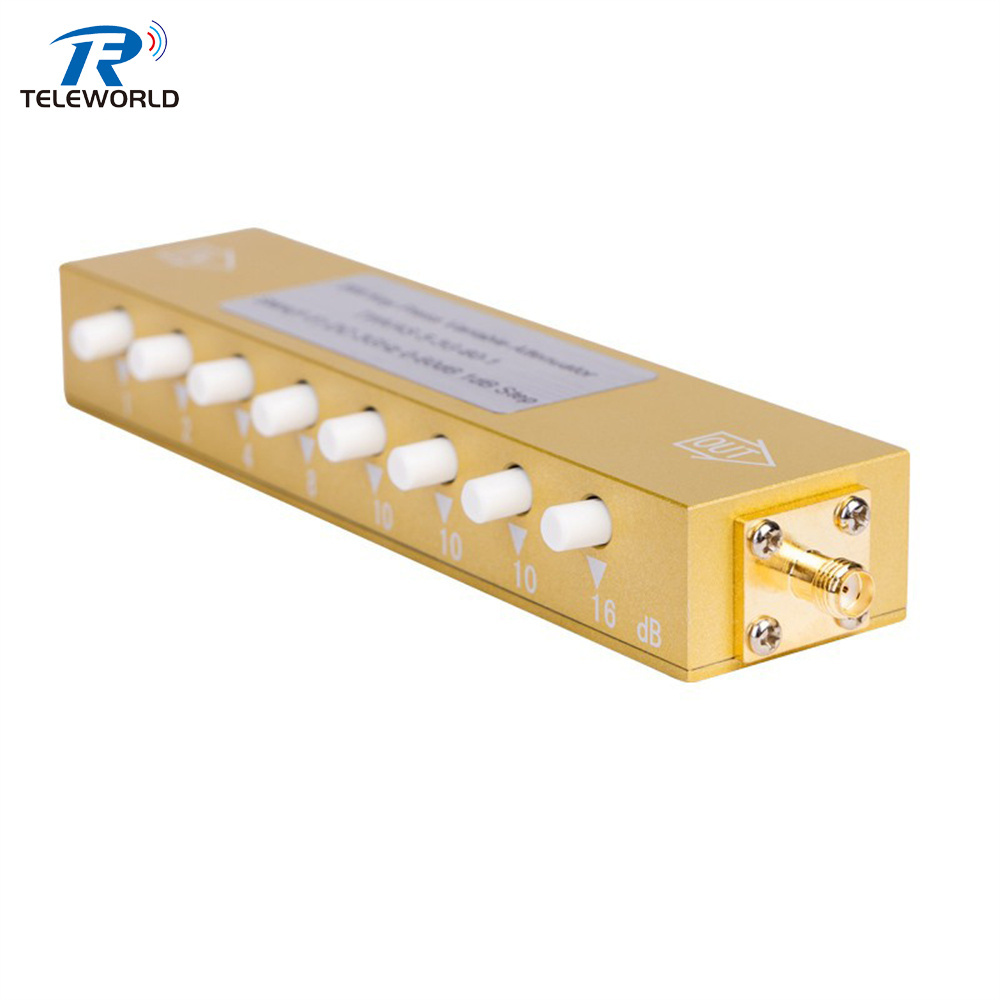

The Key Press (Push-Button) Attenuator is a distinct product category. Unlike rotary knob versions, these are valued for speed and visual confirmation. Engineers use them in production lines and high-speed R&D because you can "set" the dB value instantly by toggling switches rather than turning a dial.
| Model No. | Frequency(GHz) | Attenuation | Max VSWR | Average power | Insertion loss(dB) | Attenuation Accuracy(dB) | Connector type |
| Step Size | |||||||
| TWVAS-2-3-60-1 | DC-3 | (1,2,4,8,10,10,10,16) 0-60dB with 1dB step |
1.3 | 2W | ≤3.5 | Single step:±0.9dB Max Multi step:Max±1dB (0-10dB),Max±4dB(11-60dB),Max±10dB(60-90dB) |
SMA female |
| TWVAS-2-4-60-1 | DC-4 | 1.35 | |||||
| TWVAS-5-3-60-1 | DC-3 | 1.3 | 5W | ||||
| TWVAS-5-4-60-1 | DC-4 | 1.35 | |||||
| TWVAS-10-3-60-1 | DC-3 | 1.3 | 10W | ||||
| TWVAS-10-4-60-1 | DC-4 | 1.35 | |||||
| TWVAN-2-3-60-1 | DC-3 | 1.3 | 2W | N female | |||
| TWVAN-2-4-60-1 | DC-4 | 1.35 | |||||
| TWVAN-5-3-60-1 | DC-3 | 1.3 | 5W | ||||
| TWVAN-5-4-60-1 | DC-4 | 1.35 | |||||
| TWVAN-10-3-60-1 | DC-3 | 1.3 | 10W | ||||
| TWVAN-10-4-60-1 | DC-4 | 1.35 |
